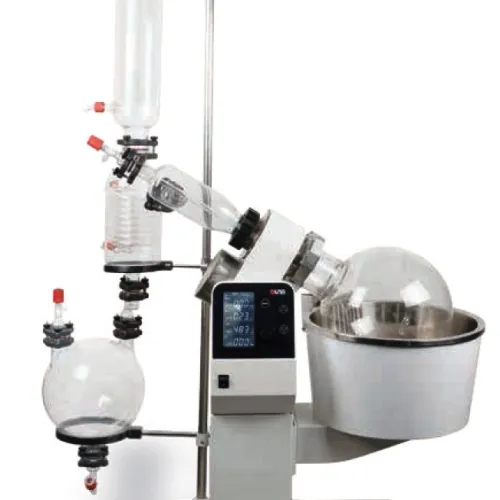

RE-200 Pro Industrial Rotary Evaporator

Rotary Evaporators


DESCRIPTION :

Specifications RE200-Pro

Performance Temperature range Room temp. ~180℃
(both water and oil)
Control Accuracy Water: ±1℃Oil: ±3℃
Rotation Speed 10~150rpm
Evaporation capacity Max.4.0L/h (water vapor volume)
Ultimate vacuum Less 2.6hpa
function Temperature control method Micro processer PID control
Display LCD (temperature/speed/clockwise and Anti-clockwise/time)
Stroke Displacement Automatic 180mm
Safety features Motor over-current protection, Residual Current Device,
lifting overload protection, Boil-dry protection,
over-temperature protection
constitute Sample flask Round flask 20L
Receiving flask Round flask 10L with drain valve
Condenser Two-section vertical triple serpentine condenser,
cooling surface 1.2m2
Specification Heating bath size φ450×240mm
Takeover caliber Cooling/suction nozzle outer diameter 16mm,
vacuum pump nozzle outer diameter 16mm
Dimension[D×W×H] 1160mm×600mm×1860mm
Power supply 220V/4600W/50/60Hz
