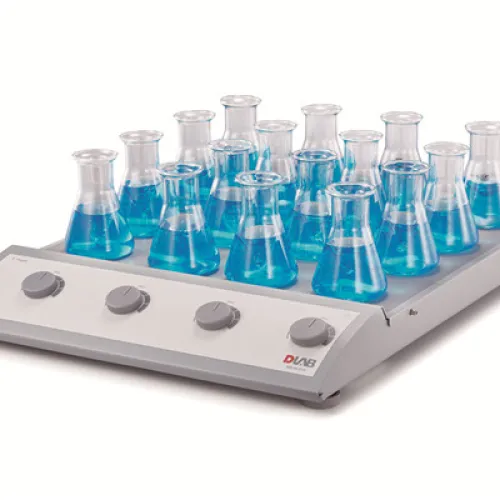

MS-M-S16
Magnetic Stirrer

HotPlate and Magnetic Stirrers


DESCRIPTION :

MS-M-S16

• A space saving unit with 16 stirring positions and 4 independent speed control channels
• A wide range of speed from 0 to 1100rpm
• High magnetic adhesion prevents stirrer spin bar out of control
• Stainless steel work plate, covered with silicone cushion, provides excellent performance of skid resistance

Specifications MS-M-S16
Work plate Dimension 365×345mm
Work plate material Stainless steel with silicone coating
Motor type DC motor
Motor input power 12W
Motor output power 4W
Power 20W
Voltage 100-120/200-240V,50/60Hz
Stirring positions 16(4 channel)
Max. stirring quantity[H2O] 0.4LX16
Max. magnetic bar[length] 40mm
Speed range 0-1100rpm
Speed display Scale
Protection class IP21
Dimension[WxDxH] 500×380×65mm
Weight 6kg
Permissible ambient temperature and humidity 5-40°C, 80%RH
