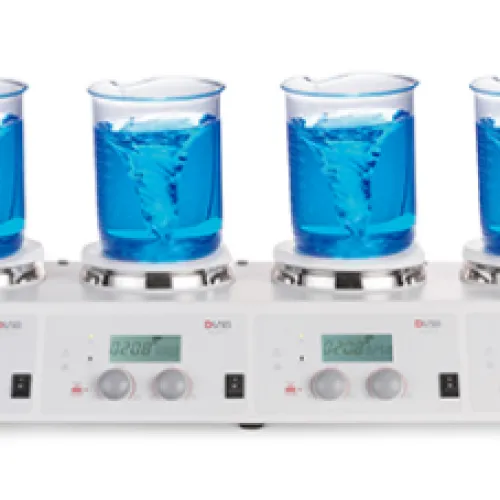

MS-H340-S4

HotPlate and Magnetic Stirrers


DESCRIPTION :

Specifications

MS-H340-S4

Work plate dimension
Φ135mm（5inch）

Plate material
Stainless steel with ceramic coating

Motor type
Brushless DC motor

Motor rating input
1.8W×4

Power
515W×4

Heating Power
500W×4

Voltage
100-120V,60Hz; 200-240V,50 Hz

Stirring positions
4

Max. stirring quantity
of single position (H2O)
10L

Max. magnetic bar
40mm

Speed range
200-1500rpm

Speed display
LCD

Temperature display
LCD

Control accuracy of sensor[rpm]
±20

Temperature range
25-340℃

Over temperature protection
420°C

Temperature display accuracy
±0.1°C

External temp. sensor
PT1000（Accuracy±0.2℃）

IP Protection class
IP21

Dimensions[WxDxH]
698×270×128mm

Weight
9.5kg

Permissible ambient temperature
5～40°C

Permissible relative humidity
80%RH
