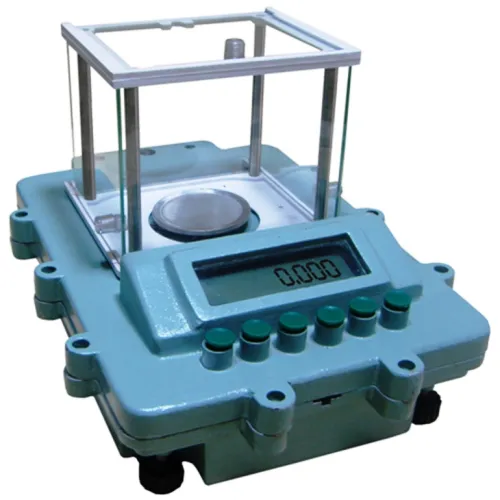

ACZET CY223
FLAME PROOF BALANCE

ACZET


DESCRIPTION :


Aczet's Flame Proof are designed for precise determination of mass in laboratory and industrial conditions in explosive areas.

Built-in application program other than basic weighing ease your routine lab work like,
- Piece Counting
- Percent Weighing
- Animal Weighing
- Formulation
- Totalization
- Check weighing
- Statistics
- Density Determination

Standard (IS 5780-2002, IS: 13346-2004) Precision Balance series EX are designed for operation EX zones 1 and 2 of mixtures of explosive vapors, gases and fogs with air, which also constitute for explosive group IIB and temperature classes T1, T2, T3 and T4.

Metal housing eliminates the effects of thunderstorms or electromagnetic inter-faience from other equipments. It also protects the weighing sensor from environmental influences which enhances the performance even with intensive use in harsh environments
High Contrast LED Backlit LCD display is exceptionally easy to read under any room lighting conditions with digit size 15 mm.
The proven MonoTech weighing technology guarantees long operation life and extreme ruggedness
Capacity bar graph show how much of the weighing range is still available.
User can weigh in various weighing units like mg, g, ct, oz, dwt, tola, mommes, baht, grain, mesghal, ozt, Hong Kong Taels, Singapore Taels, Taiwan Taels. This extends flexibility to the user

All the technical specification are same of CY series
MODEL CY123 CY223 CY323 CY423 CY513 CY723 CY1003
Capacity 120g 220g 320g 420g 510g 720g 1000g
Readability 0.001g 0.001g 0.001g 0.001g 0.001g 0.001g 0.001g
Repeatability (std dev) 0.001g 0.001g 0.001g 0.001g 0.001g 0.002g 0.002g
Linearity (+/-) 0.002g 0.002g 0.002g 0.002 g 0.002g 0.002g 0.002g
Pan size (mm/inch) 128x128mm/5.0”x5.0”
Response time 2-3sec
Display Birght LCD Display with LED backlite
calibratio Automatic External Calibration
Unit of measure mg, g, ct, oz, dwt, tola, mommes, baht, grain, mesghal, ozt, Hong Kong Taels, Singapore Taels, Taiwan Taels.
Tare Range Full
Operating Temprature 10°C to 40°C
Dimension (WXDXH) mm 342mmX212mmX260mm
Power Suplly AC Adapter 100V- 240V +/- 20% 50-60Hz
Net weight with Packing 5.5 kg
Packing Dimension(WxDxH) 50cmx40cmx33cm
