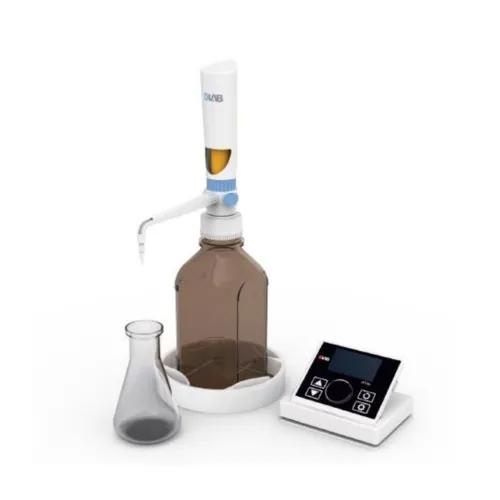

dFlow
Electronic Bottle-Top Dispenser

Liquid Handlings


DESCRIPTION :

dFlow

Precise control : Motor operation minimizes the grip force

Easy to operate : Remote control panel with large display

without the manual error : Two dispensing modes：Dispenser and stepper function options

Excellent chemical resistance : Components are made of PTFE, FEP, BSG.

• Motor operation minimizing the grip force
• Electronic control decreasing the repeatitive strain injury
• The remote control panel makes the operating process without the manual disturb
• Complete with dispenser and stepper function


Volume range : 0.1ml-99.9ml, Max piston lift is10ml, resolution is 100μl

Volume accuracy : Dispenser: R=10ml±30μl; CV=10ml±10μl ; Stepper R=1ml±6μl; CV=1ml±9μl

Operating temperature range : 10℃~30℃

Quality control : DIN EN ISO 8655

Control type : External control
